Rear brake disc

[AndyR]

New tyres all fitted and wheels back on. Great to have the Triking back on the road for this spectacular weather!!

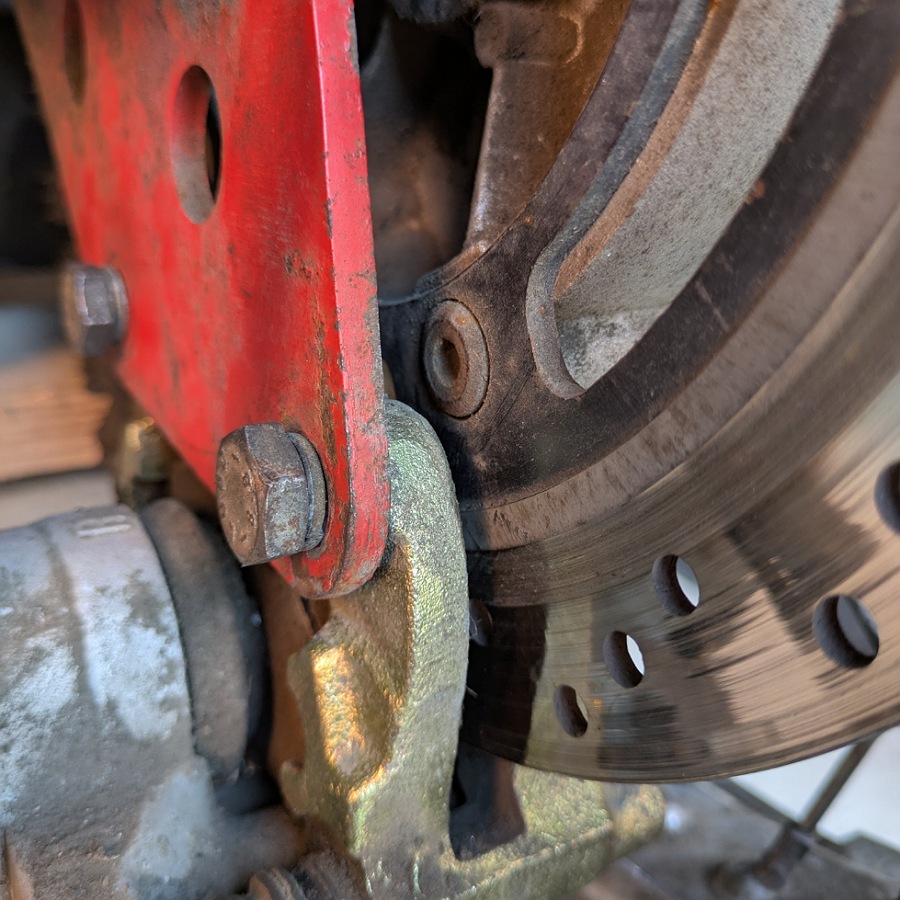

Whilst re-fitting the back wheel I noticed that the rear brake pads are only connecting to part of the disc. There is no adjustment on the caliper holding plate to correct this. Any ideas?

Thanks

Andy

[Weg]

Looks about right.
It's a rear brake, doesn't do much work anyway.

[iant-s]

Only concern might be if there is a section of brake pad material not touching the disc. This would not wear down and so create a step in the friction material on both sides.

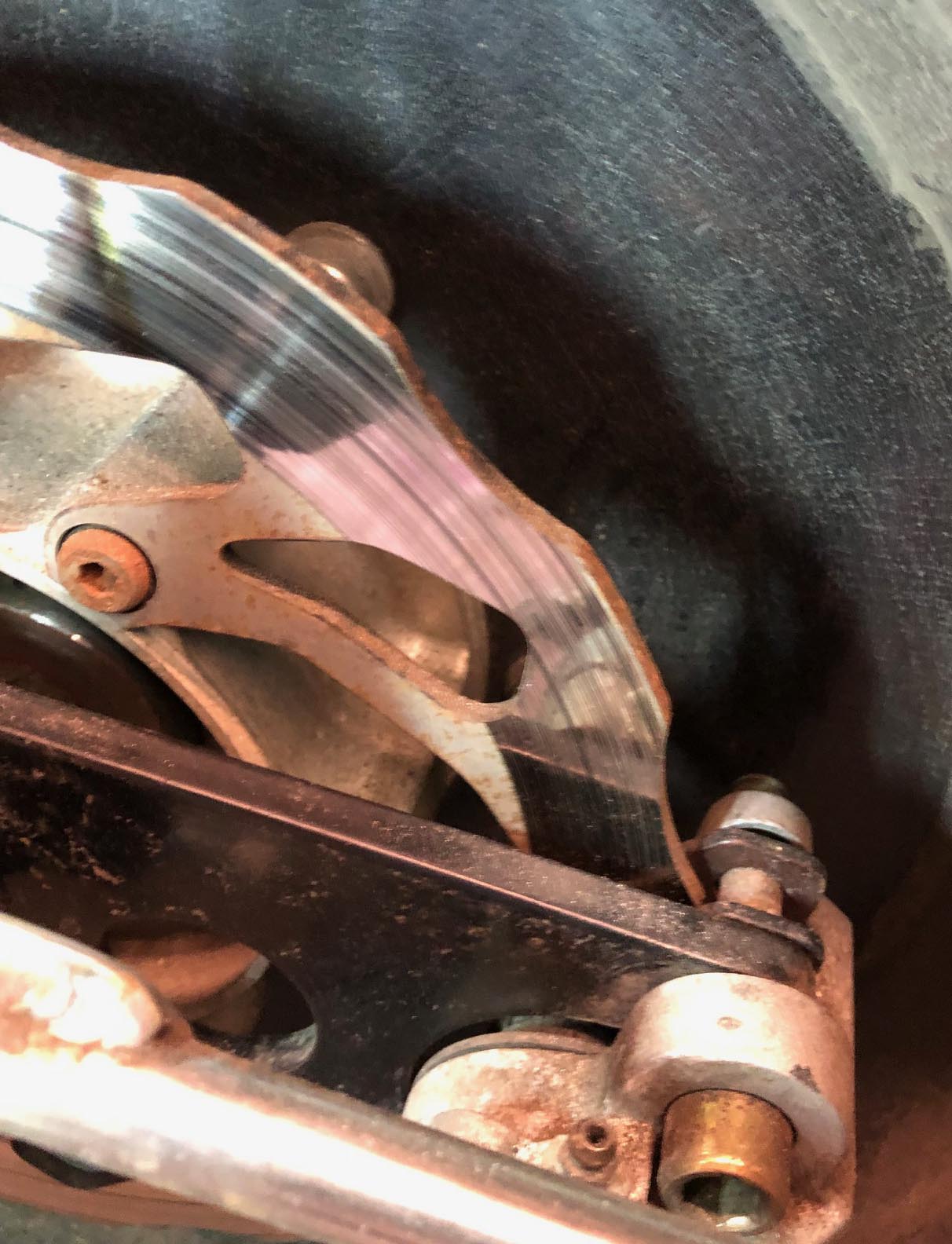

I welded the holes up in my brake-pkate and made new ones further in so all of my pads sweeps the disc.

[CairAndros]

Judging the space between Outer rim of the disc and the bridge of the caliper(I estimate it is 1 inch) the caliper is mounted to low on the mounting plate.
Therefore the brake pads did not touch the disc on the outer rim.
I would move the mounting holes to the correct distance so the pads fit correctly on the disc.
